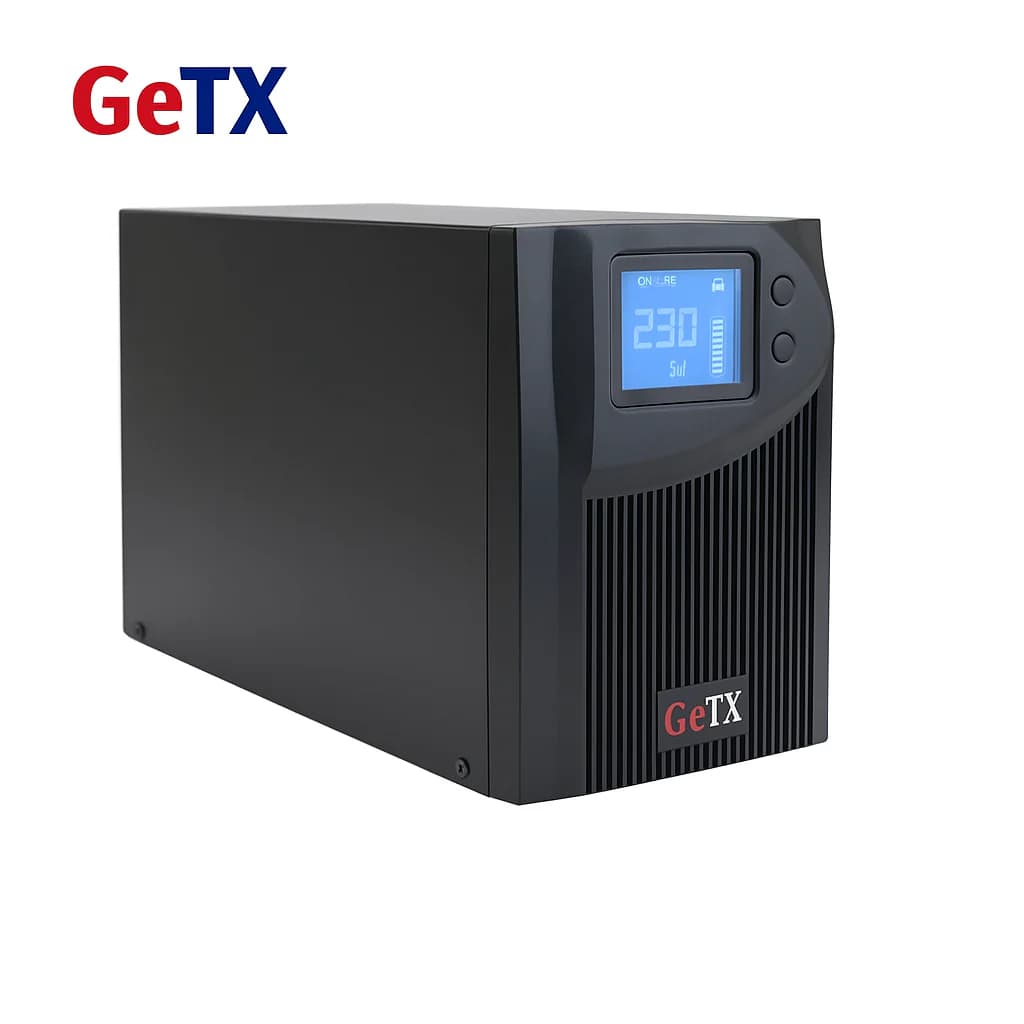

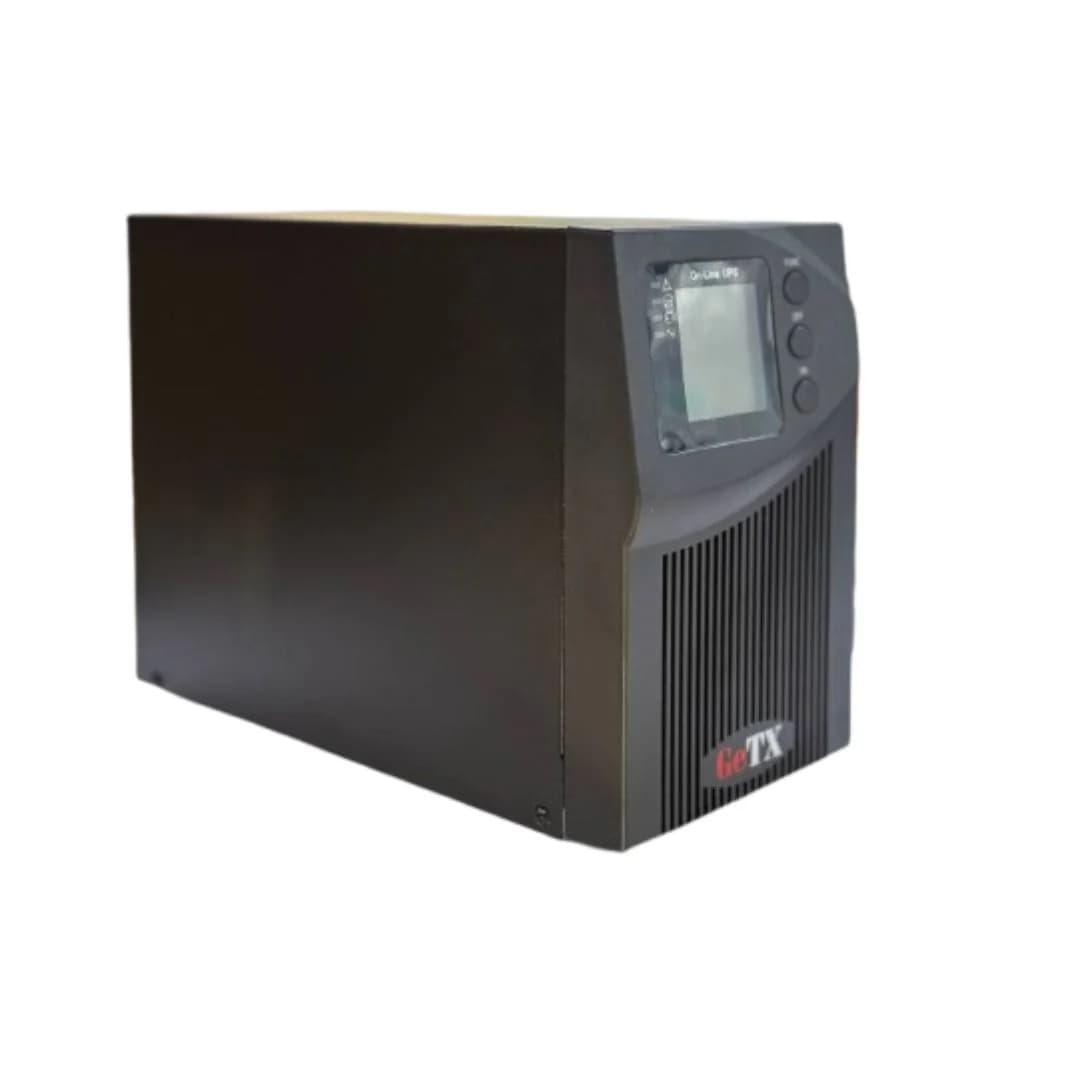

UPS Getx 1000va, 1KV Online - GXK-1-1-1-CO (LCD, Battery 12V-9A *2)

UPS Specifications

General Overview

• Model: GXK-1-1-1-CO
• Power Capacity: 1000 VA / 800 W
• UPS Type: Double-conversion On-line
• Wave Type: Sine wave
• Efficiency: 88% (full load)
• Bypass Type: Internal bypass (automatic and manual)
• Lead Time: Usually in Stock

Input Specifications

• Main Input Voltage: 230 V
• Other Input Voltages: 220 V, 240 V
• Input Voltage Limits:Half Load: 110 - 285 V
• Full Load: 160 - 280 V
• Network Frequency: 40 - 70 Hz (auto sensing)
• Input Connection Type: IEC 60320 C14
• Cable Length: 1.50 m
• Number of Cables: 1

Output Specifications

• Main Output Voltage: 230 V
• Other Output Voltages: 220 V, 240 V
• Maximum Configurable Power:VA: 1000 VA
• W: 800 W
• Output Frequency: 50/60 Hz ±3 Hz (sync to mains)
• Harmonic Distortion: 3%
• Crest Factor: 3:1
• Output Connection Type: 3 × IEC 60320 C13

Battery Specifications

• Battery Type: Lead-acid battery
• Battery Voltage: 24 V
• Number of Battery Slots (Filled): 1
• Number of Battery Slots (Free): 0
• Battery Recharge Time: 4 hours
• Battery Life: 3 - 5 years
• Replacement Battery: APCRBCV203
• Battery Charger Power: 30 W

Runtime & Backup

• Maximum Runtime: 4 minutes
• Heat Dissipation: 372 Btu/h
• Acoustic Level: 50 dBA

Physical Specifications

• Dimensions (HxWxD): 22.3 cm × 14.5 cm × 28.8 cm
• Weight: 9.3 kg
• Color: Black (RAL 7010)
• Mounting: Floor, Vertical (Not rack-mountable)

Communication & Management

• Control Panel: Multifunction LCD status and control console
• USB Compatibility: Yes
• Alarm Types:On battery: distinctive low battery alarm
• Overload: continuous tone alarm

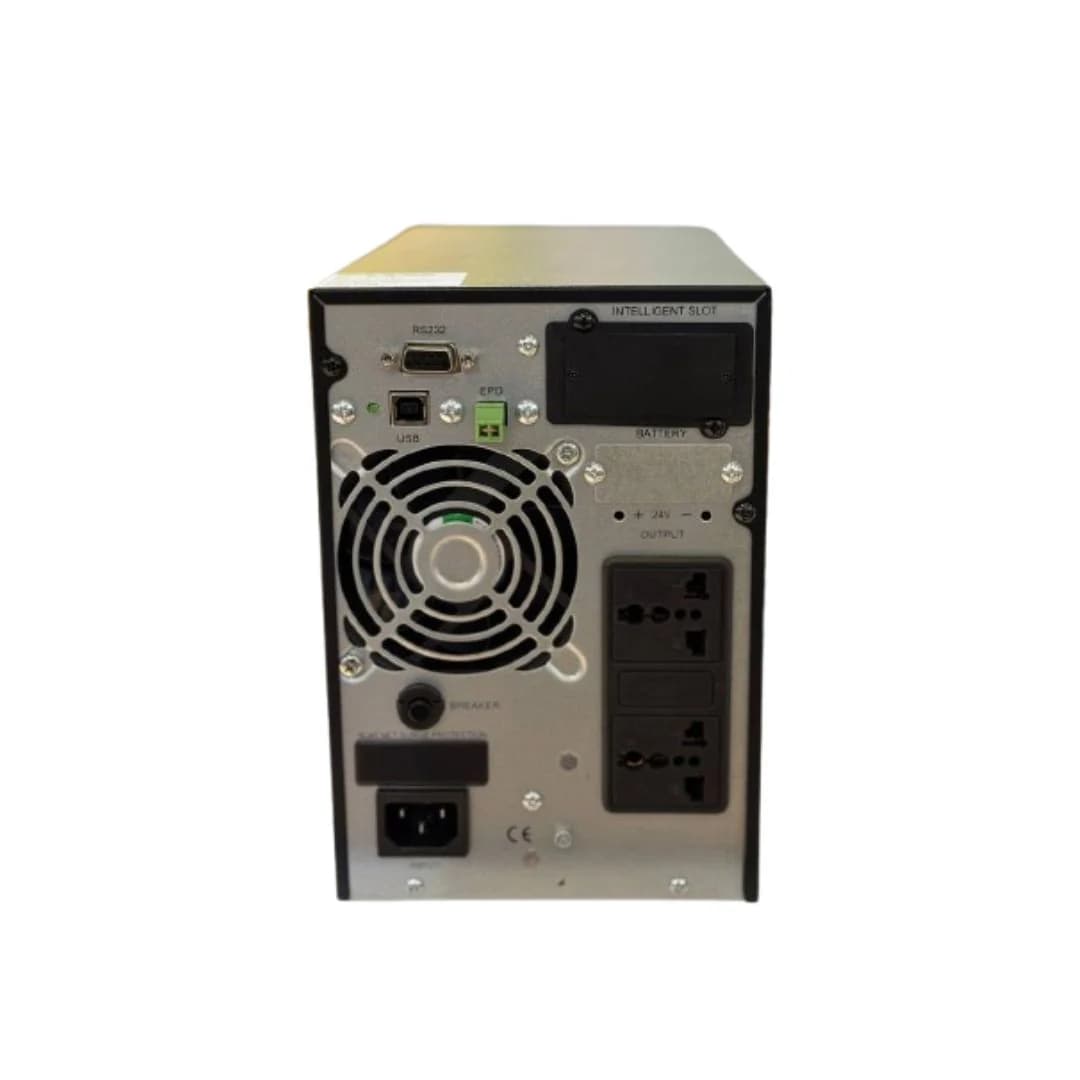

• Communication Ports: USB, RS-232
• Free Slots: 1
• Intelligent Card Slot: Yes

Surge Protection & Filtering

• Surge Energy Rating: 600 J

Environmental Specifications

• Operating Temperature: 0 - 40 °C
• Storage Temperature: -20 - 50 °C
• Relative Humidity (Operation/Storage): 0 - 95% non-condensing
• Operating Altitude: 0 - 3000 m
• Storage Altitude: 0 - 15000 m
• IP Degree of Protection: IP20

Certifications & Standards

• Certifications: CE, UKCA, EAC, TISI
• Standards:EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

Package Information

• Package Dimensions (HxWxL): 33 cm × 23.5 cm × 36.5 cm
• Package Weight: 10.6 kg
