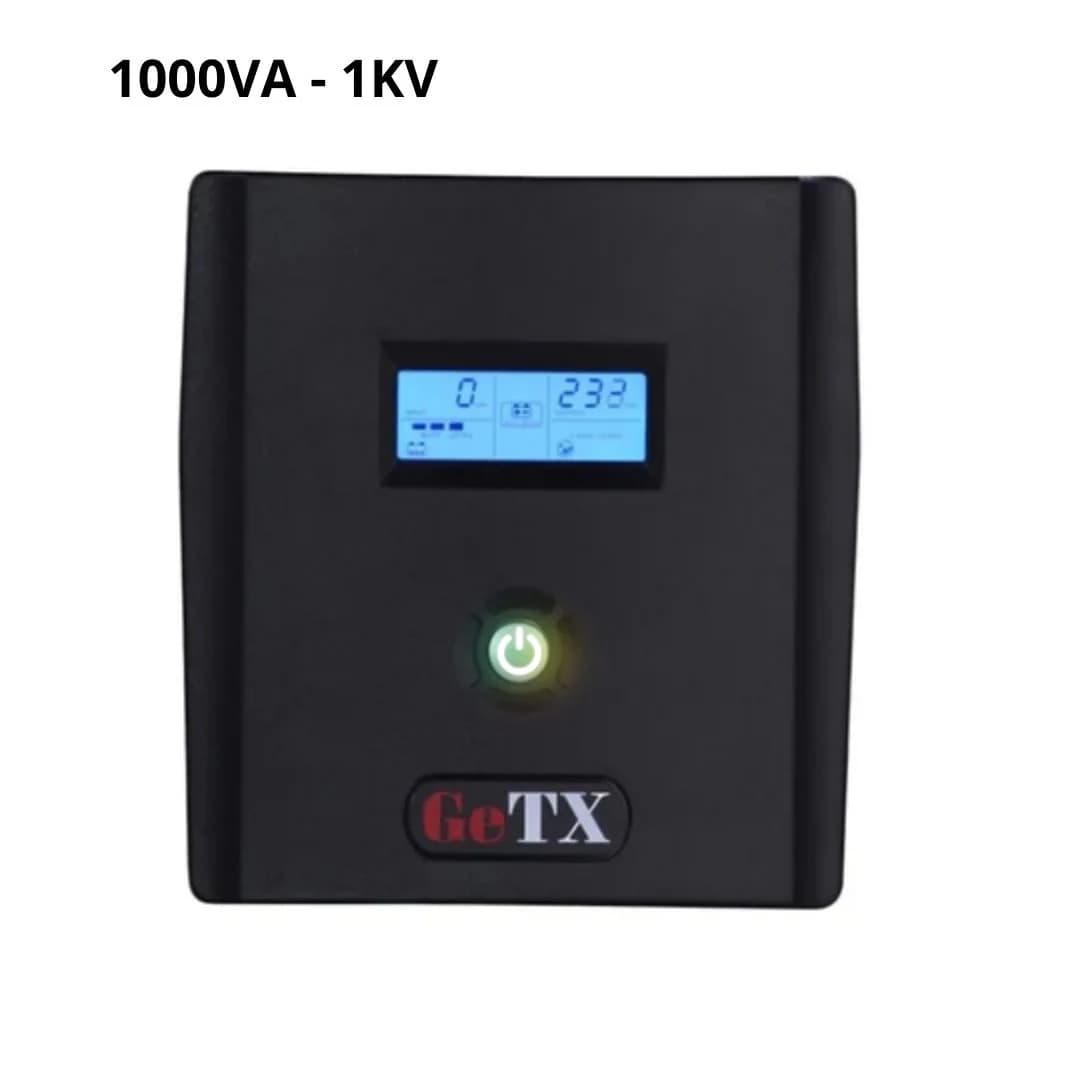

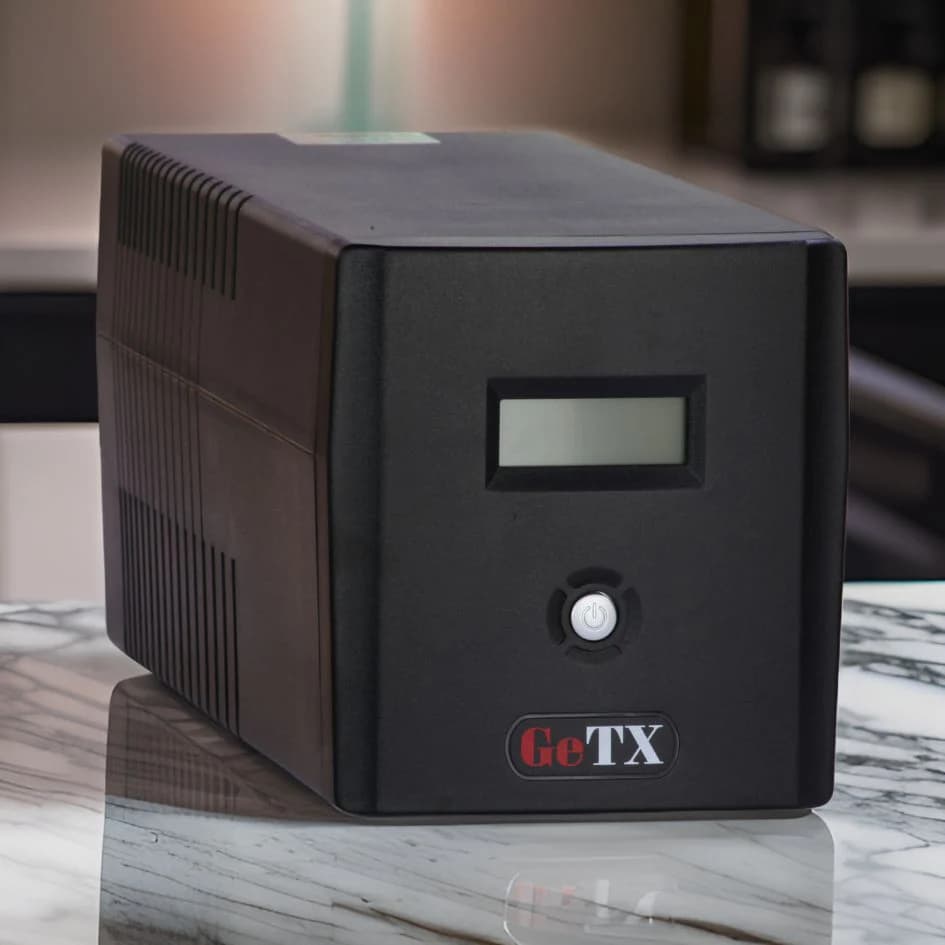

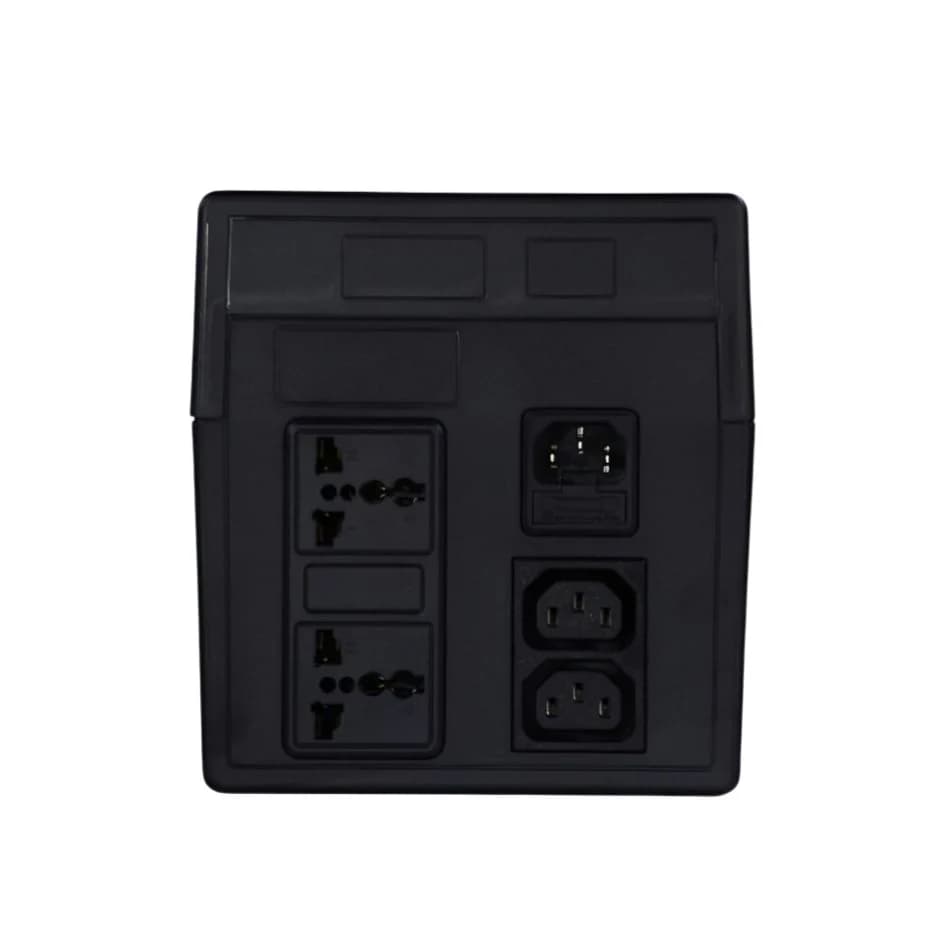

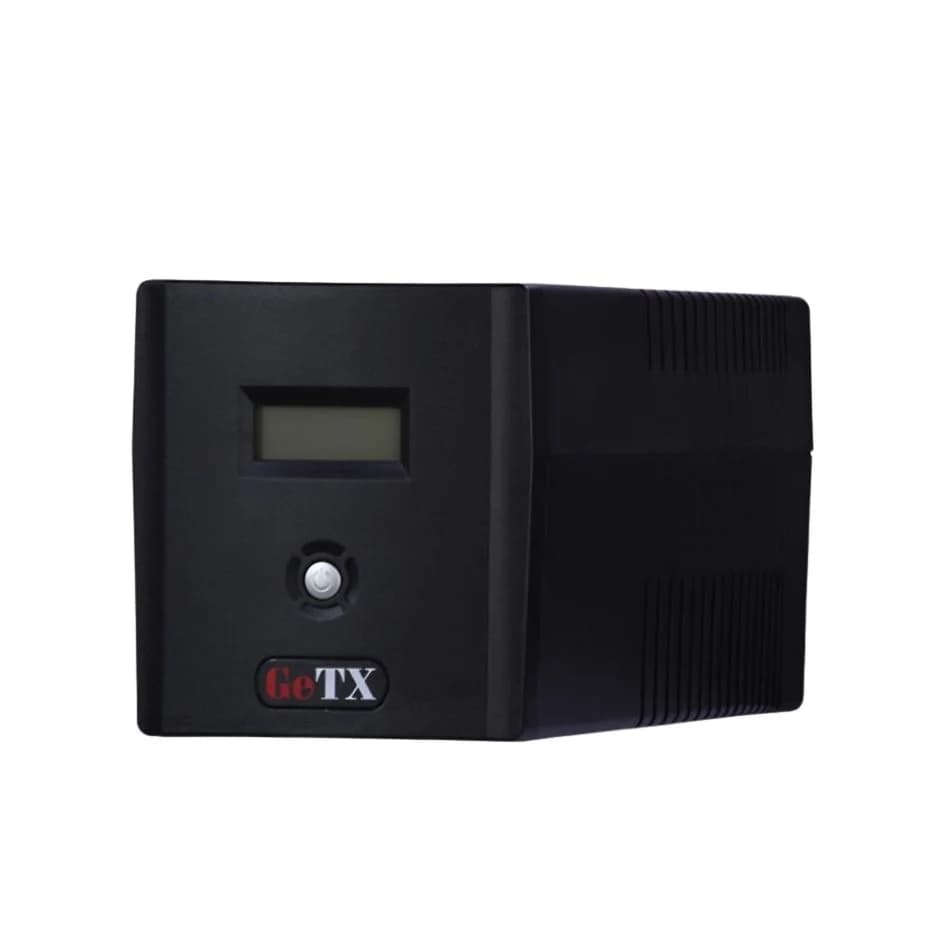

UPS GeTX GXK-1000-C (1000VA, 1KV), Line interactive, LCD Battery 12v-7a *2

Specification

Model: GXK-1000-C

Capacity: 1000VA

UPS Type: Line Interactive

Waveform (Battery Mode): Simulated Sinewave

Control: Microprocessor-controlled with internal self-diagnostics

AVR: Boost and Buck with wide input range (two boost, one buck)

Cold Start: Yes

Auto Restart: Yes (when AC recovers)

Input:

Voltage: 220/230/240Vac

Voltage Range: 140–300Vac

Frequency Range: 50/60Hz (auto sensing)

Output:

AC Voltage Regulation (Batt. Mode): ±10%

Frequency Range (Batt. Mode): 50/60Hz ±1Hz

Transfer Time: Typical 4–8ms

Waveform (Batt. Mode): Simulated Sinewave

Battery:

Voltage: 24Vdc

Type & Quantity: 12V 7Ah × 2

Recharge Time: 6–8 hours to 90% capacity

Indicators:

LED Version: AC Mode, Battery Mode, Overload, Fault

LCD Version: AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, Battery Low

Protection:

Short circuit, Overload, Overcharge, Overdischarge

Alarm:

Battery Mode: Every 10 seconds

Low Battery: Every second

Overload: Every 0.5 second

Battery Replacement: Every 2 seconds

Fault: Continuous sounding

Management:

Communication Port: USB or RS232

OS Support: Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, MAC

Operating Environment:

Humidity: 0–90% RH @ 0–40°C (non-condensing)

Noise Level: <45dB

Physical:

Dimensions (D × W × H): 314 × 130 × 175 mm

Net Weight: 7.2 kg
