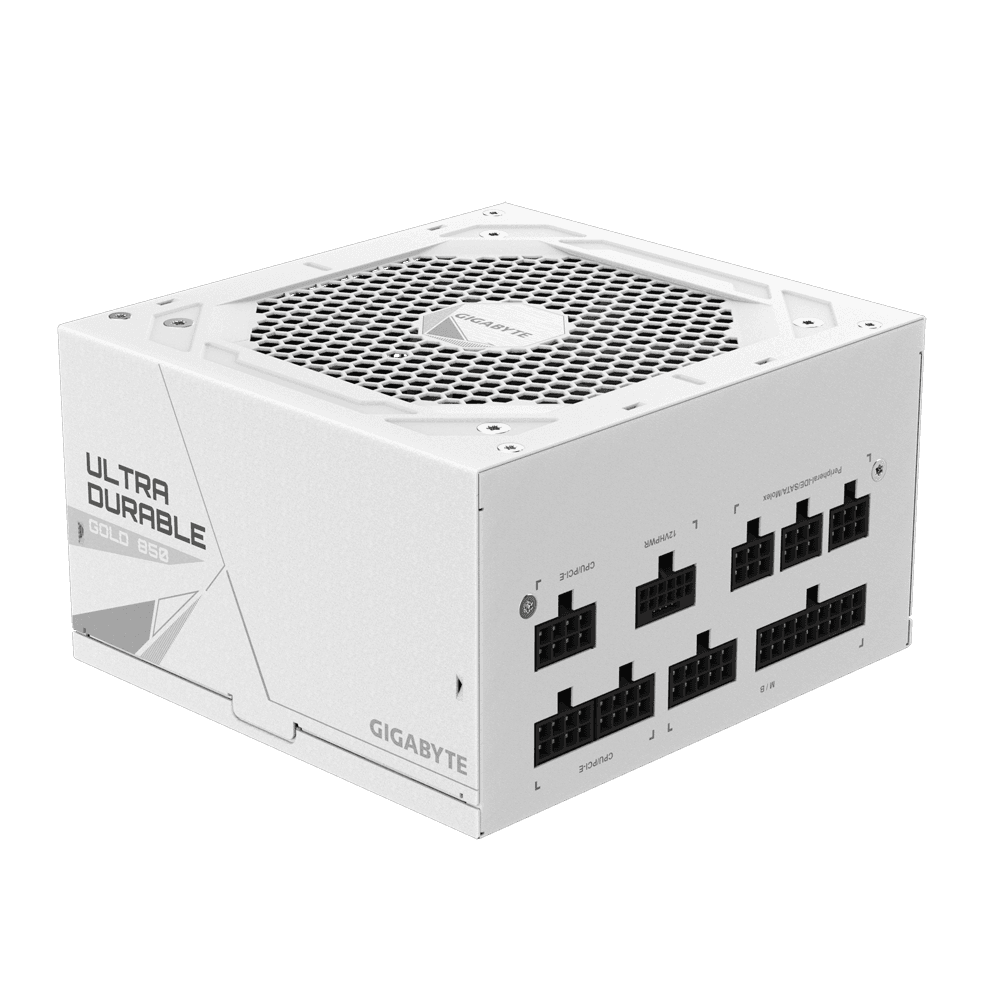

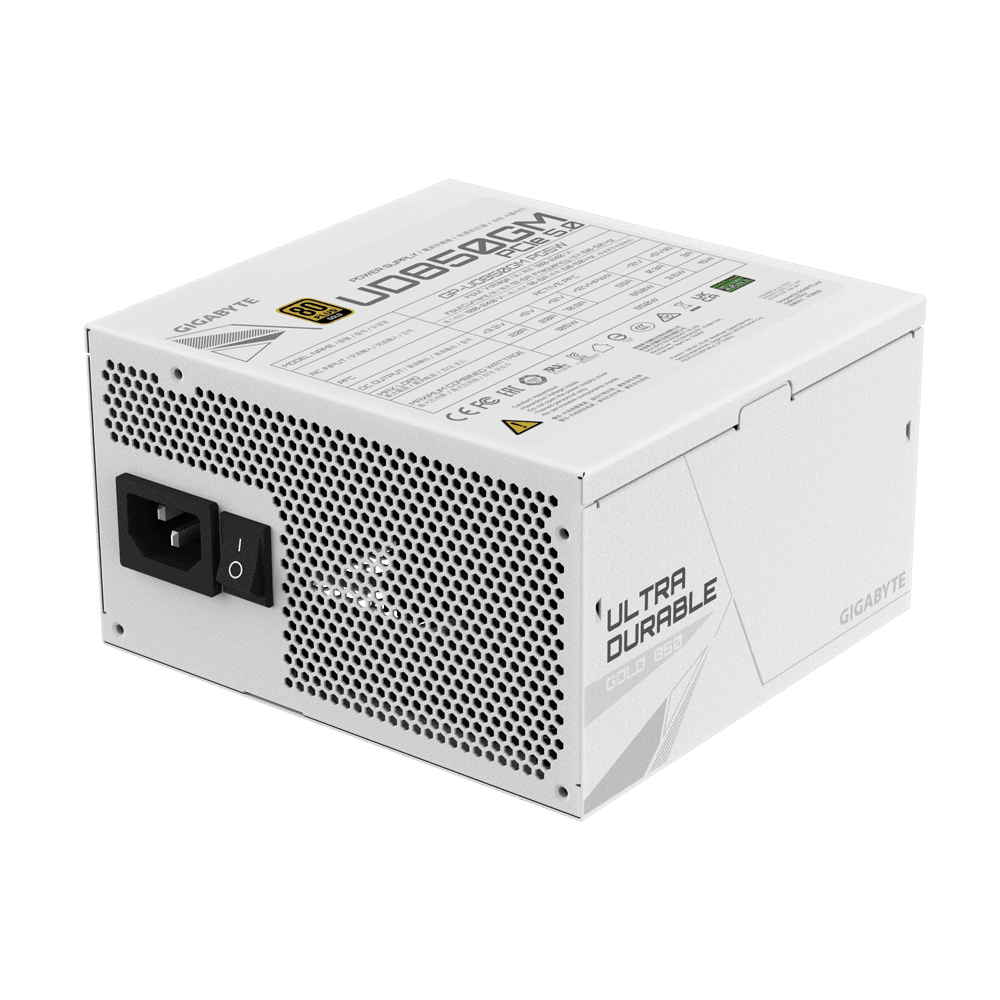

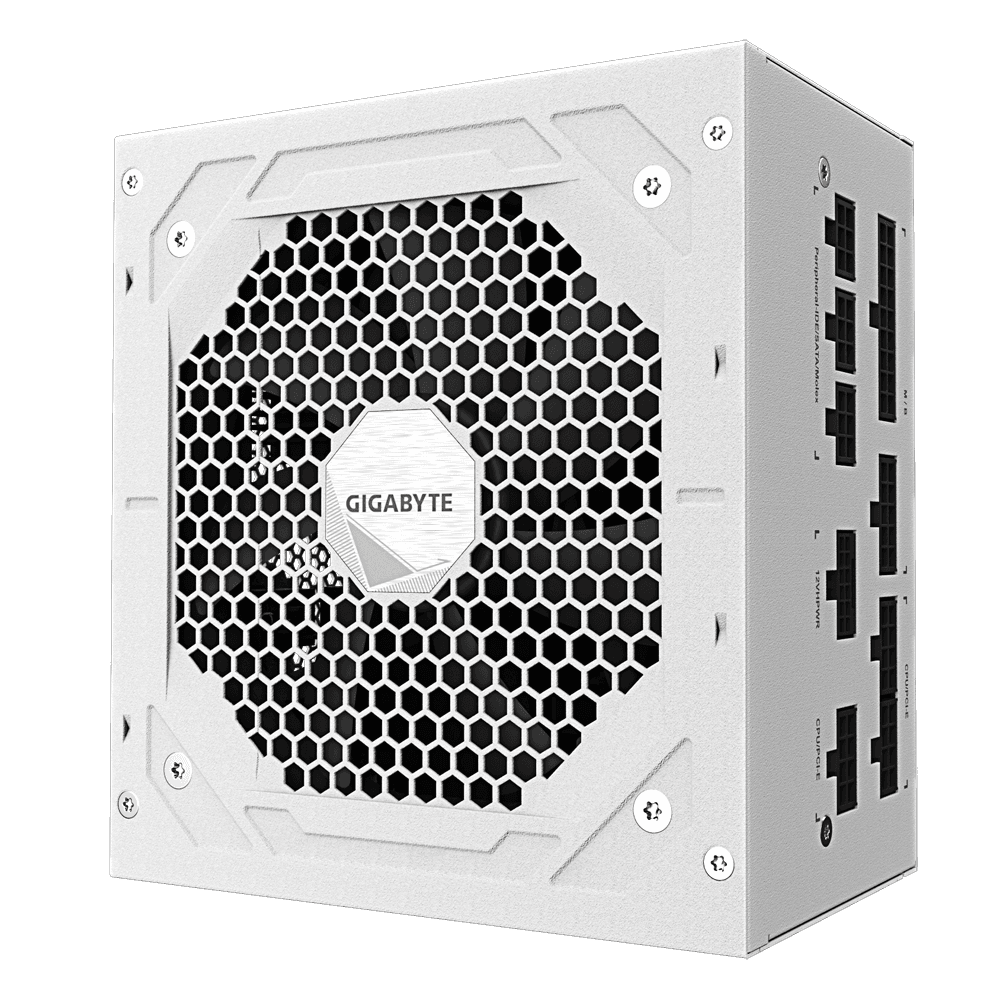

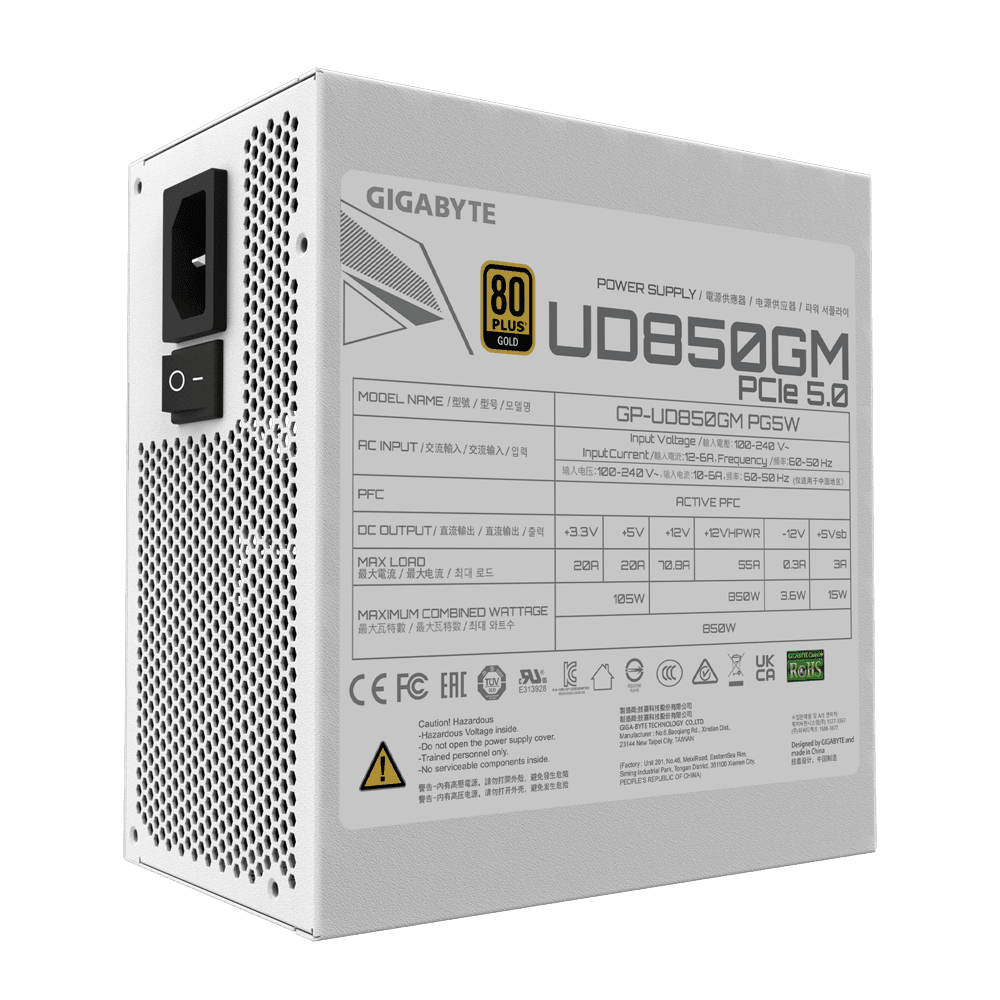

GIGABYTE UD850GM 850W 80+PLUS GOLD WHITE Power Supply

Key Specifications

• Power Output: 850W

• Efficiency Certification: 80 PLUS® Gold

• Form Factor: ATX

• ATX Standard: ATX 12V v3.0

• PCIe Support: PCIe Gen 5.0 Ready

• 16-Pin PCIe Connector: Included

• Modular Design: Fully Modular

• Cooling Fan: 120mm Hydraulic Bearing (HYB) Fan

• Input Voltage: 100-240V AC

• PFC Type: Active PFC (>0.9 Typical)

• 12V Rail: Single +12V Rail

• Efficiency: 90% at Typical Load

• MTBF: >100,000 Hours

• Power Good Signal: 100-150ms

• Hold Up Time: >16ms

• Protection Features: OVP, OPP, SCP, UVP, OCP, OTP

• Cable Type: Flat, All White

• Color: White

• Dimensions: 150 × 140 × 86 mm

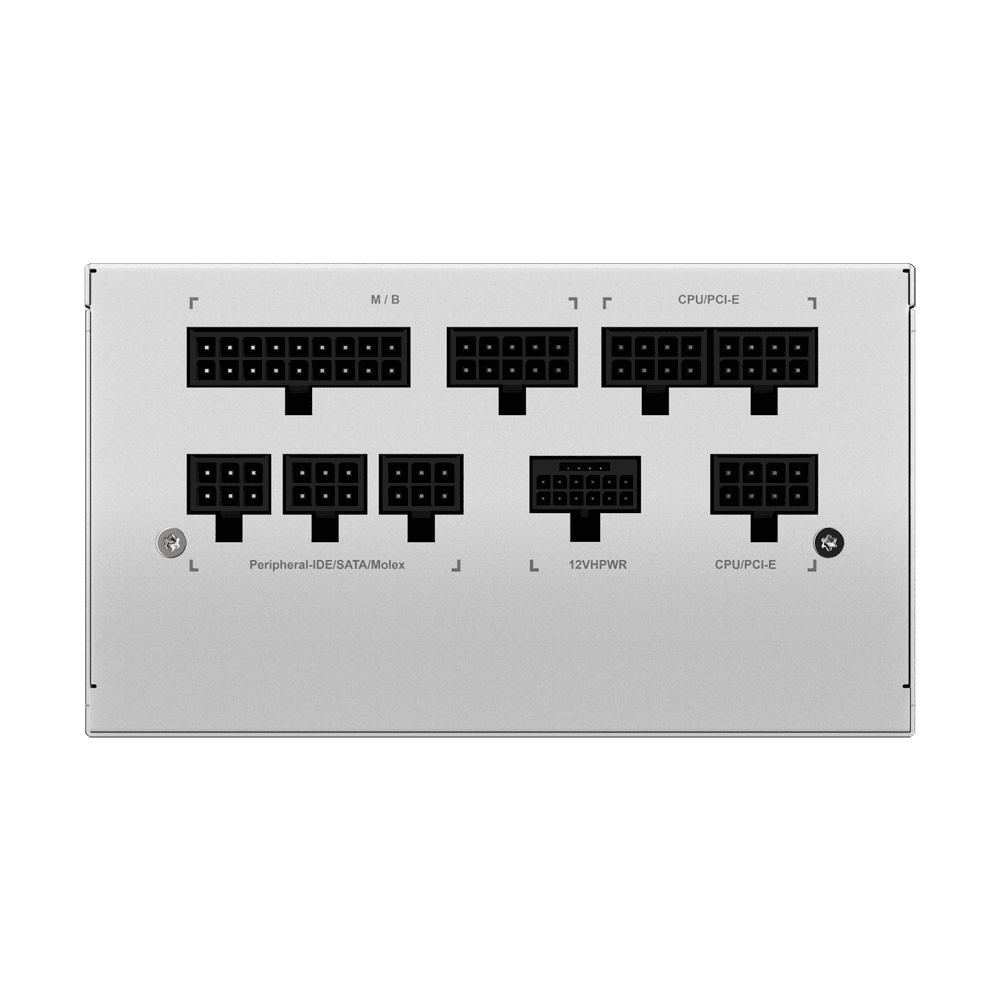

Connector Configuration

• 1 × 20+4-Pin ATX/MB

• 2 × 4+4-Pin EPS/CPU

• 1 × 16-Pin PCIe

• 4 × PCIe 6+2 Pin

• 8 × SATA

• 3 × 4-Pin Peripheral (Molex)

• 1 × 4-Pin Floppy
