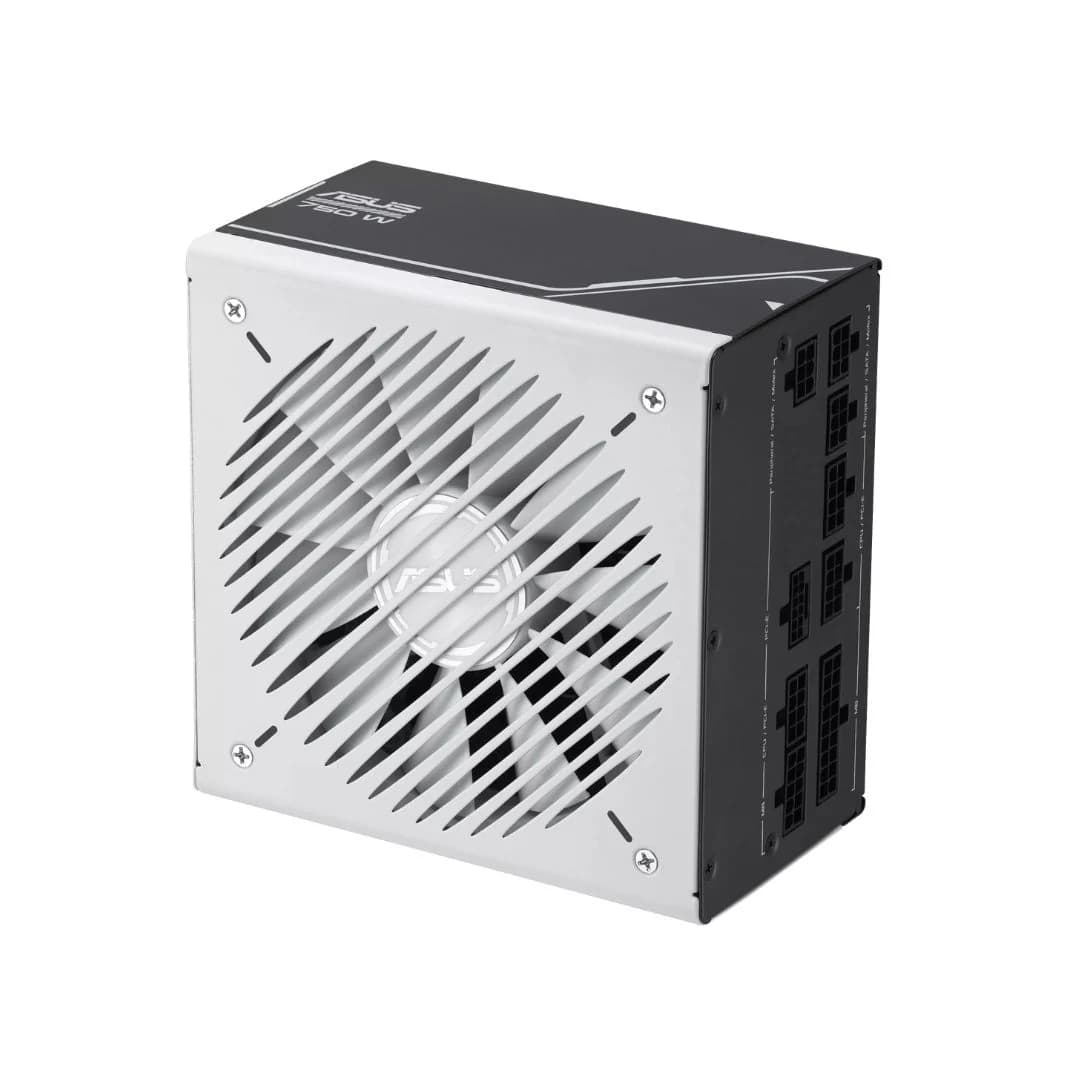

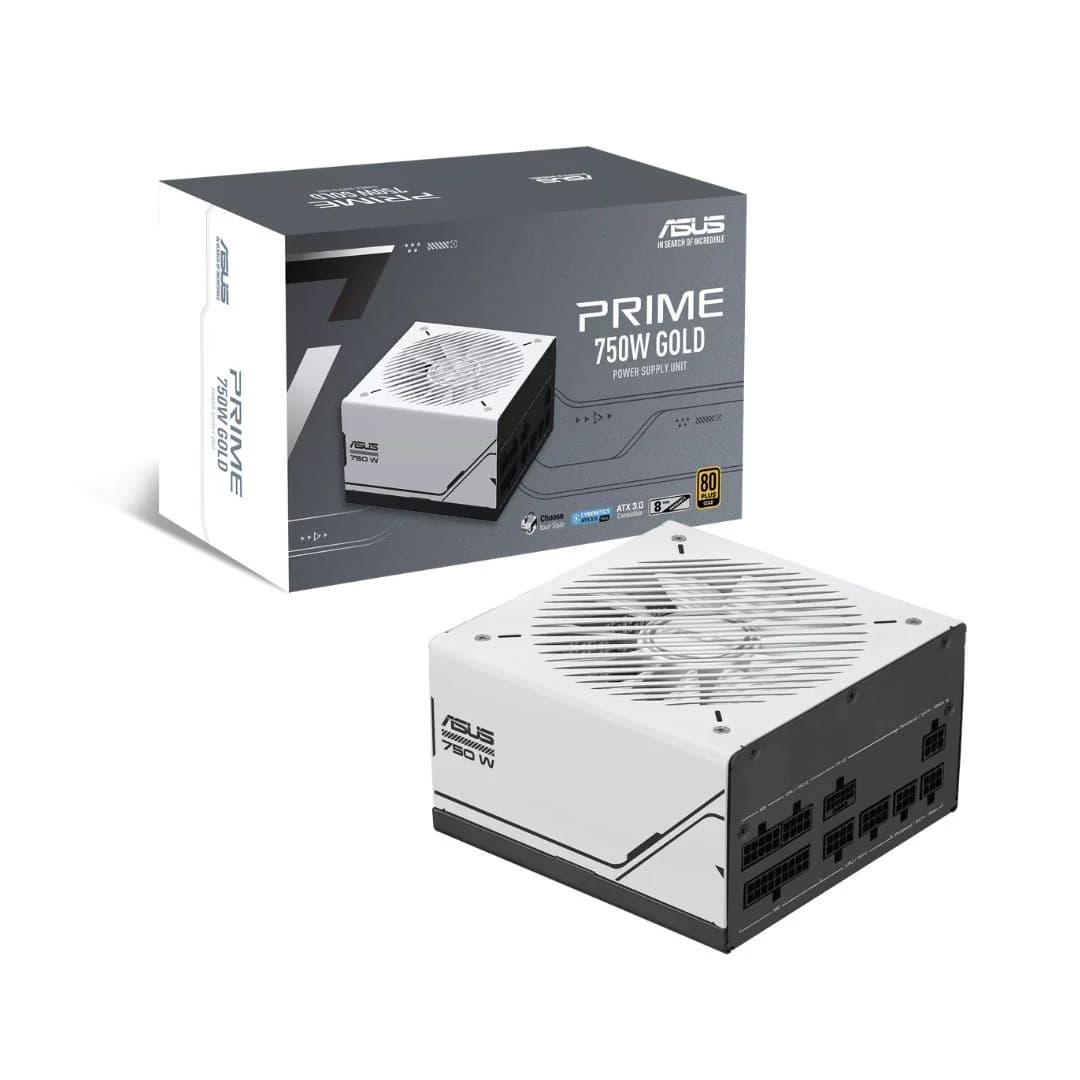

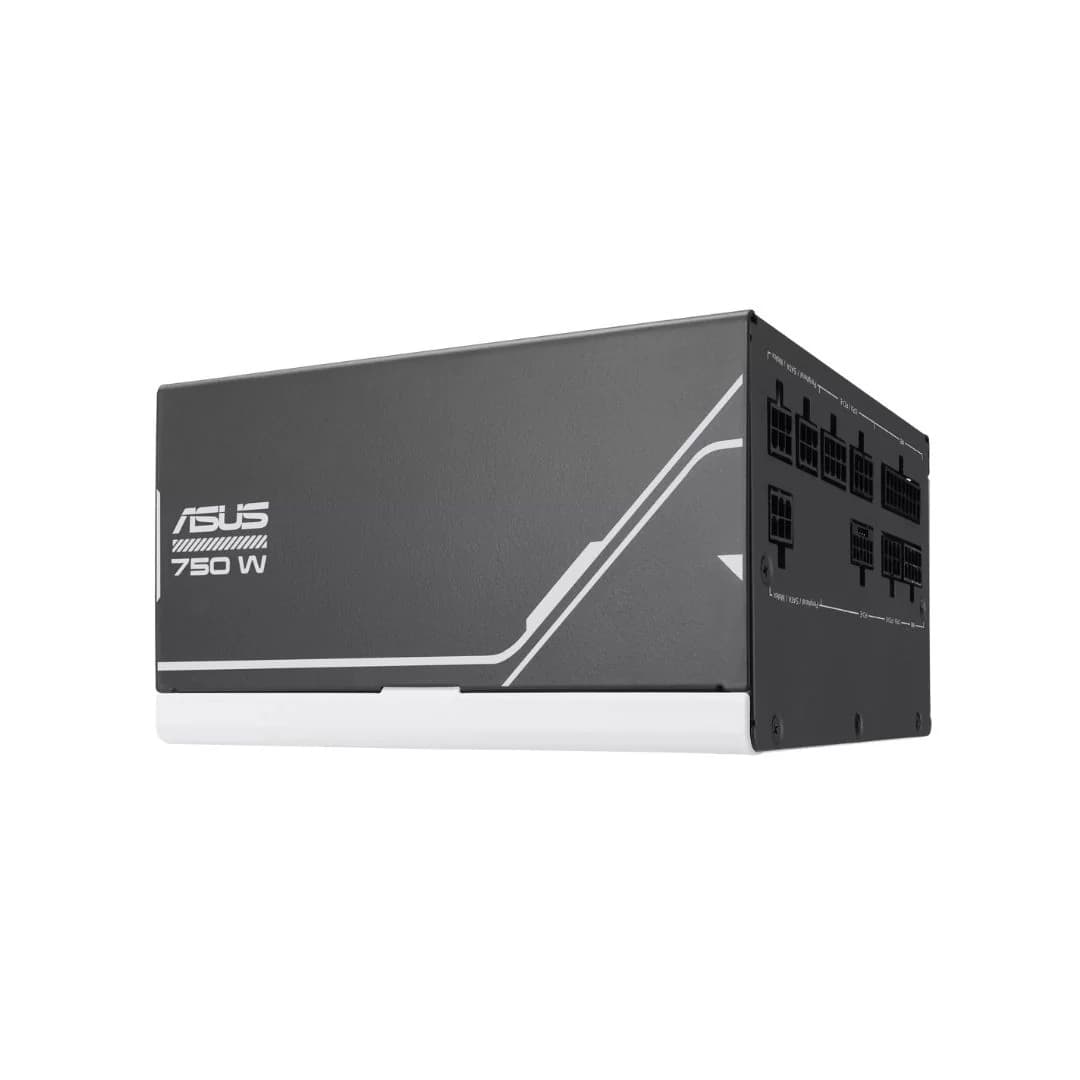

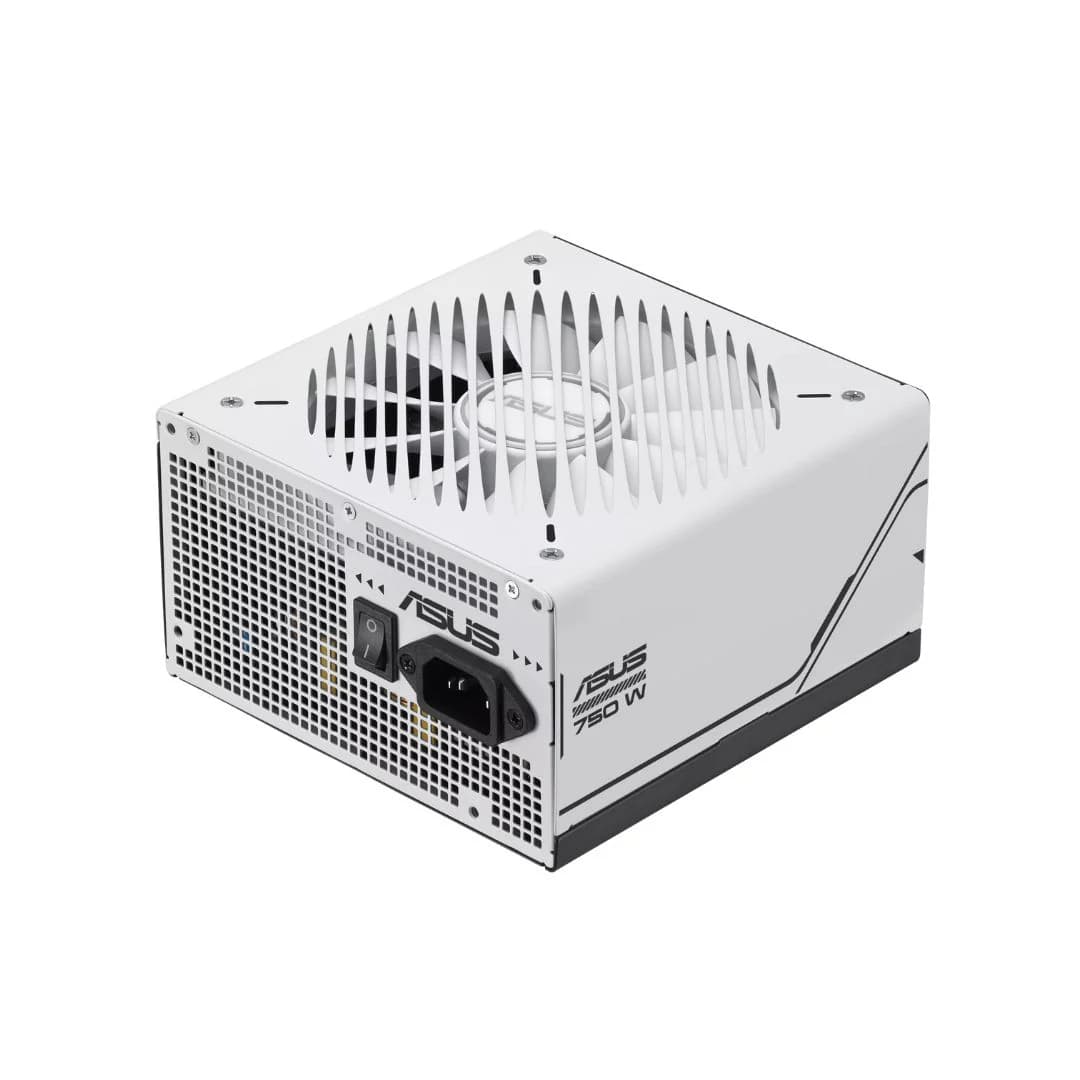

ASUS Prime AP-750G - 750W 80+ Gold, Full Modular, PCIe 5.0

ASUS Prime AP‑750G – 750W 80 Plus Gold, Fully Modular, PCIe 5.0

General

• Brand: ASUS
• Series: Prime
• Model: AP‑750G
• Type: ATX Power Supply Unit (PSU)
• Form Factor: ATX 3.1
• Color: Black / White

Capacity

• Wattage: 750 W
• Efficiency: 80 Plus Gold Certified
• MTBF: >120,000 hrs @ 25 °C

Performance

• Modularity: Fully Modular (detachable cables)
• Cooling: 120 mm fan
• Protections: OPP, OVP, UVP, SCP, OCP, OTP

Compatibility

• PCIe 5.0: Native 16‑pin (12VHPWR) connector

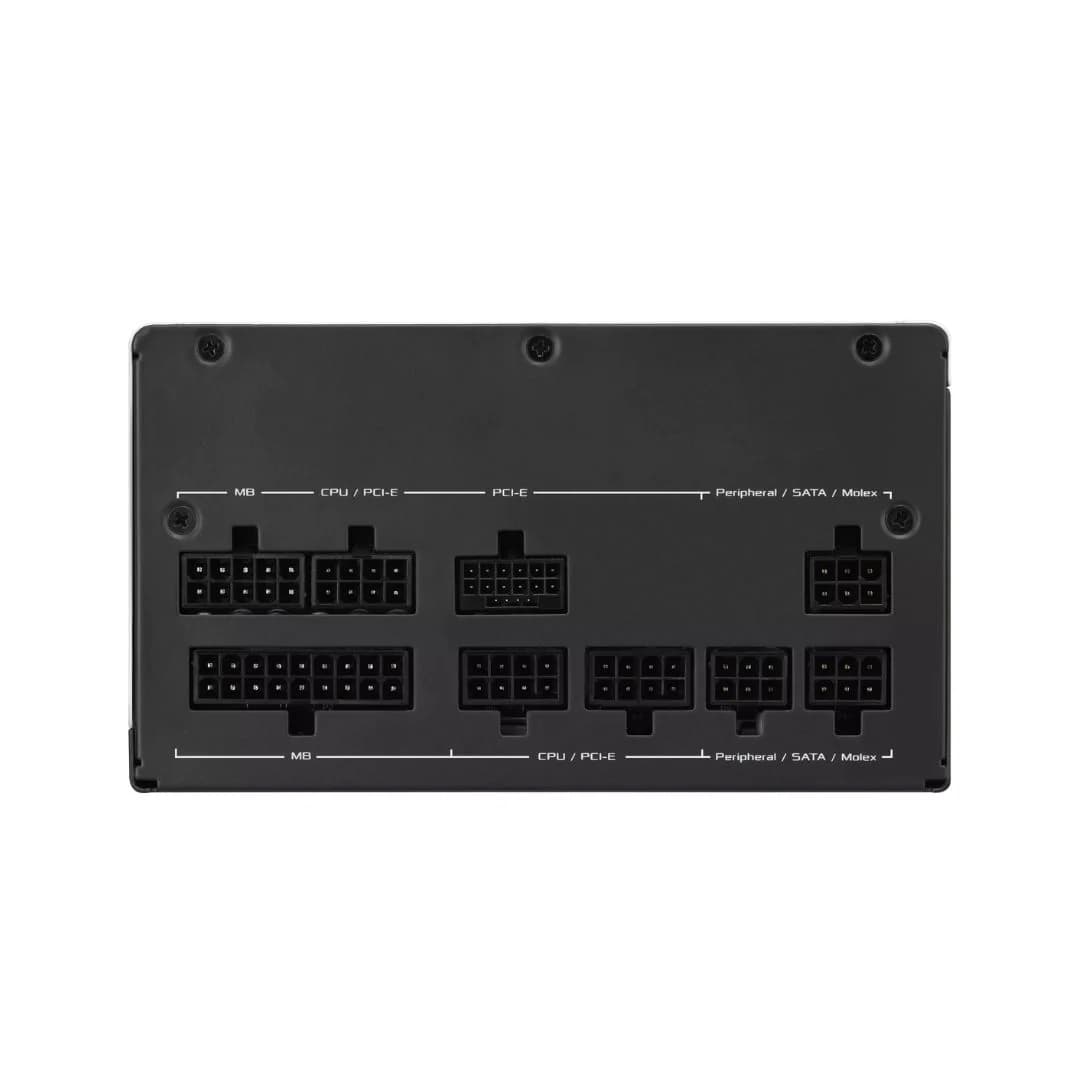

• Connectors:
  • 1 × 24/20‑pin ATX
  • 2 × 4+4‑pin EPS
  • 1 × PCIe Gen 5.1 16‑pin
  • 3 × PCIe 8‑pin
  • 5 × SATA
  • 3 × Peripheral (Molex)

Design

• Dimensions: 150 × 150 × 86 mm
• Weight: 1.466 kg
• Build Quality: Active PFC, RoHS compliant

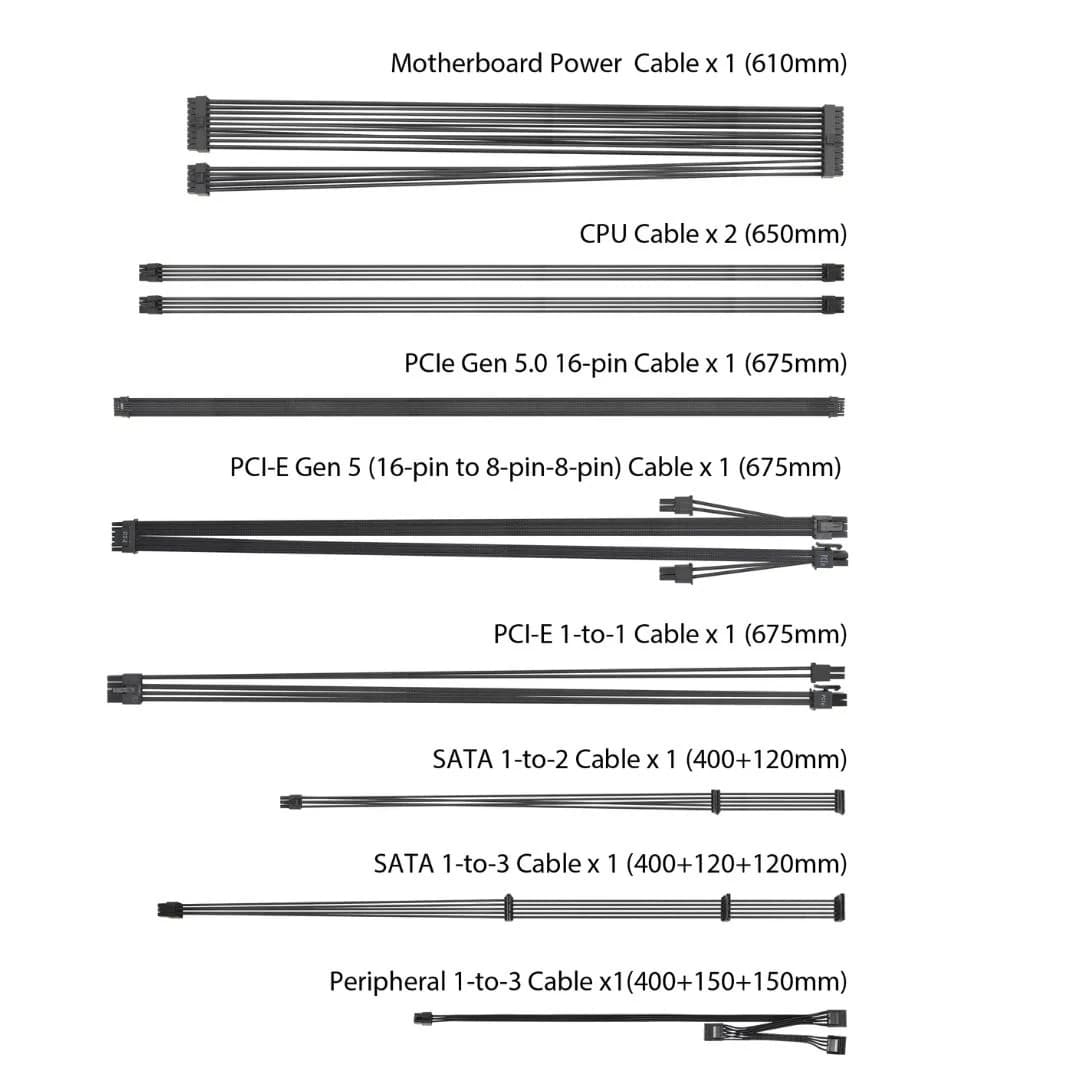

Package Contents

• PSU Unit × 1
• Motherboard Power Cable × 1
• CPU Cables (4+4‑pin) × 2
• PCIe Gen 5.1 16‑pin Cable × 1
• PCIe (16‑pin to dual 8‑pin) Cable × 1
• PCIe 1‑to‑1 Cable × 1
• SATA Cables (1‑to‑2 / 1‑to‑3) × 2
• Peripheral Cable (1‑to‑3) × 1
• Power Cord × 1
• User Manual × 1
