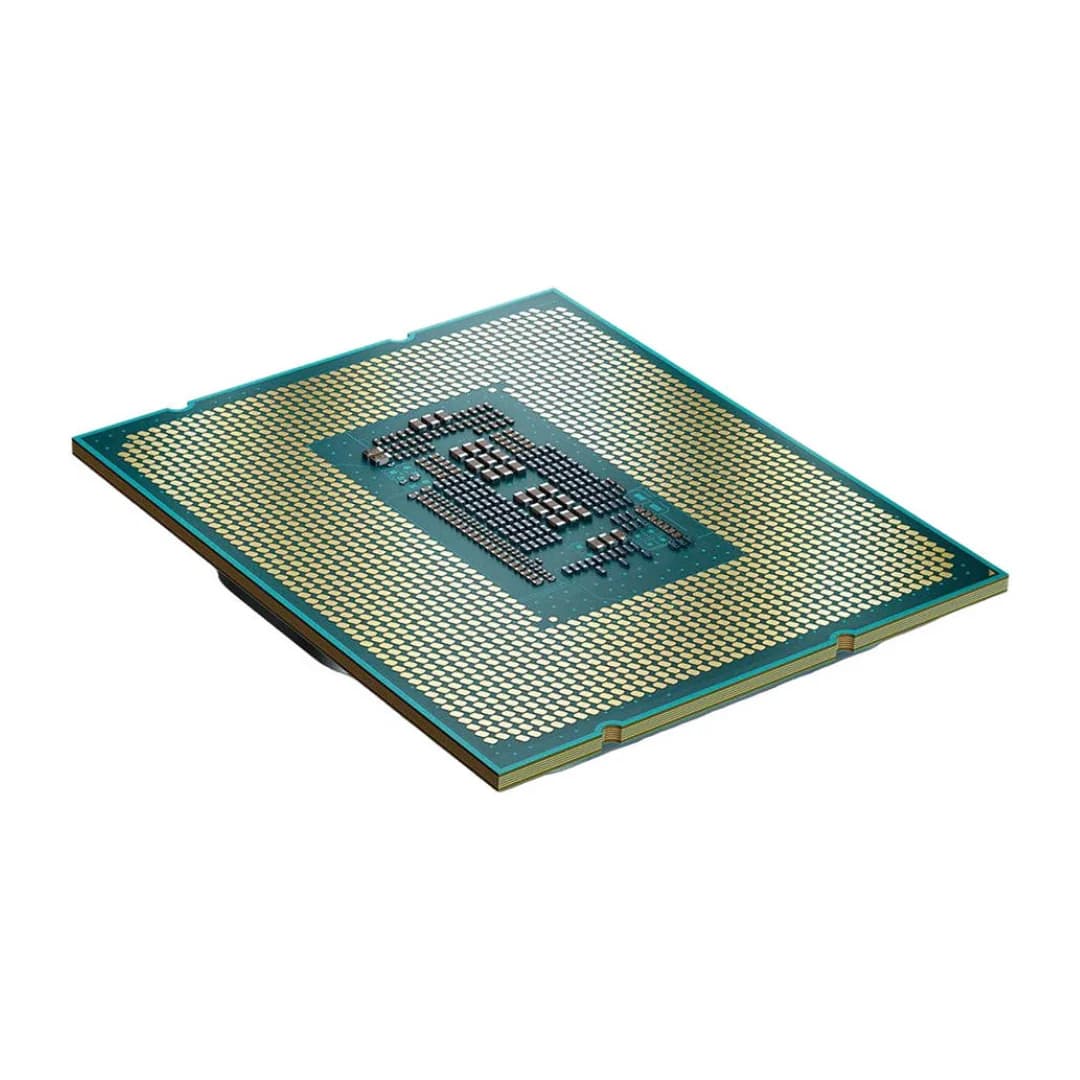

Intel Core i7-14700KF Processor - BOX

Processor Specification

• Sockets Supported: LGA1700
• Architecture / Code: Raptor Lake Refresh
• Total Cores: 20 Cores
• Core Breakdown: 8 Performance-cores (P-cores) / 12 Efficient-cores (E-cores)
• Total Threads: 28 Threads
• Multithreading: Enabled (Intel Hyper-Threading Technology on P-cores)
• Max Turbo / Boost Frequency: Up to 5.6 GHz (P-Core Max: 5.5 GHz / Turbo Boost Max 3.0: 5.6 GHz, E-Core Max: 4.3 GHz)
• Base Frequency: P-Core Base: 3.4 GHz, E-Core Base: 2.5 GHz
• L3 Cache: 33 MB (Intel Smart Cache)
• L2 Cache: 28 MB
• Processor Power: Base Power: 125 W | Max Turbo Power (MTP): 253 W
• Max Temperature (TjMax): 100 °C
• System Memory Support: Up to DDR5-5600 MT/s / Up to DDR4-3200 MT/s
• Max Memory Capacity: 192 GB
• Memory Channels: Dual-Channel (2 Channels)
• PCI Express Revision & Lanes: PCIe 5.0 & 4.0 (Up to 20 CPU Lanes)
• Processor Graphics: None (Requires discrete graphics card)
• NPU / AI Acceleration: No dedicated NPU (Includes Intel DL Boost & GNA 3.0)
• Unlocked for Overclocking: Yes
