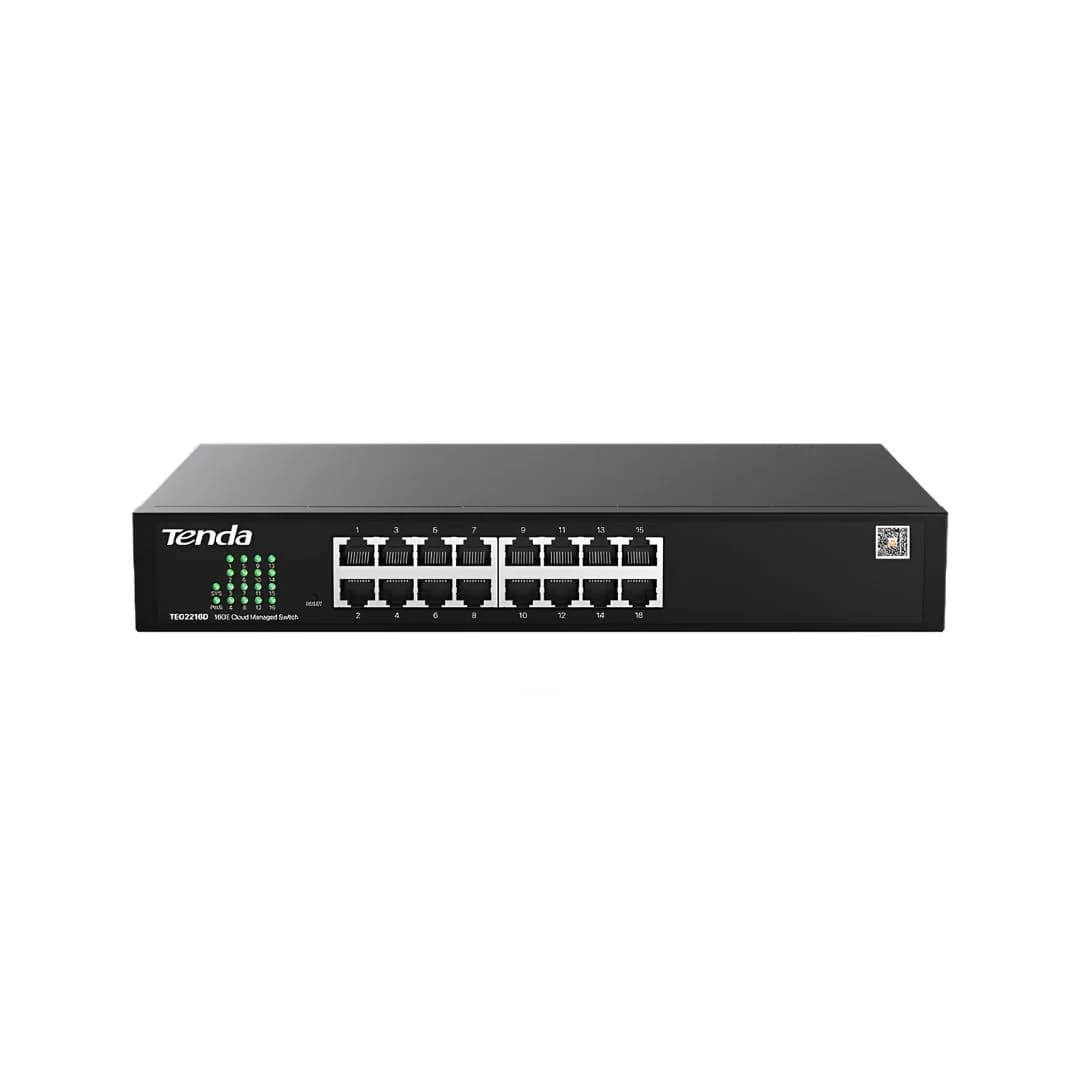

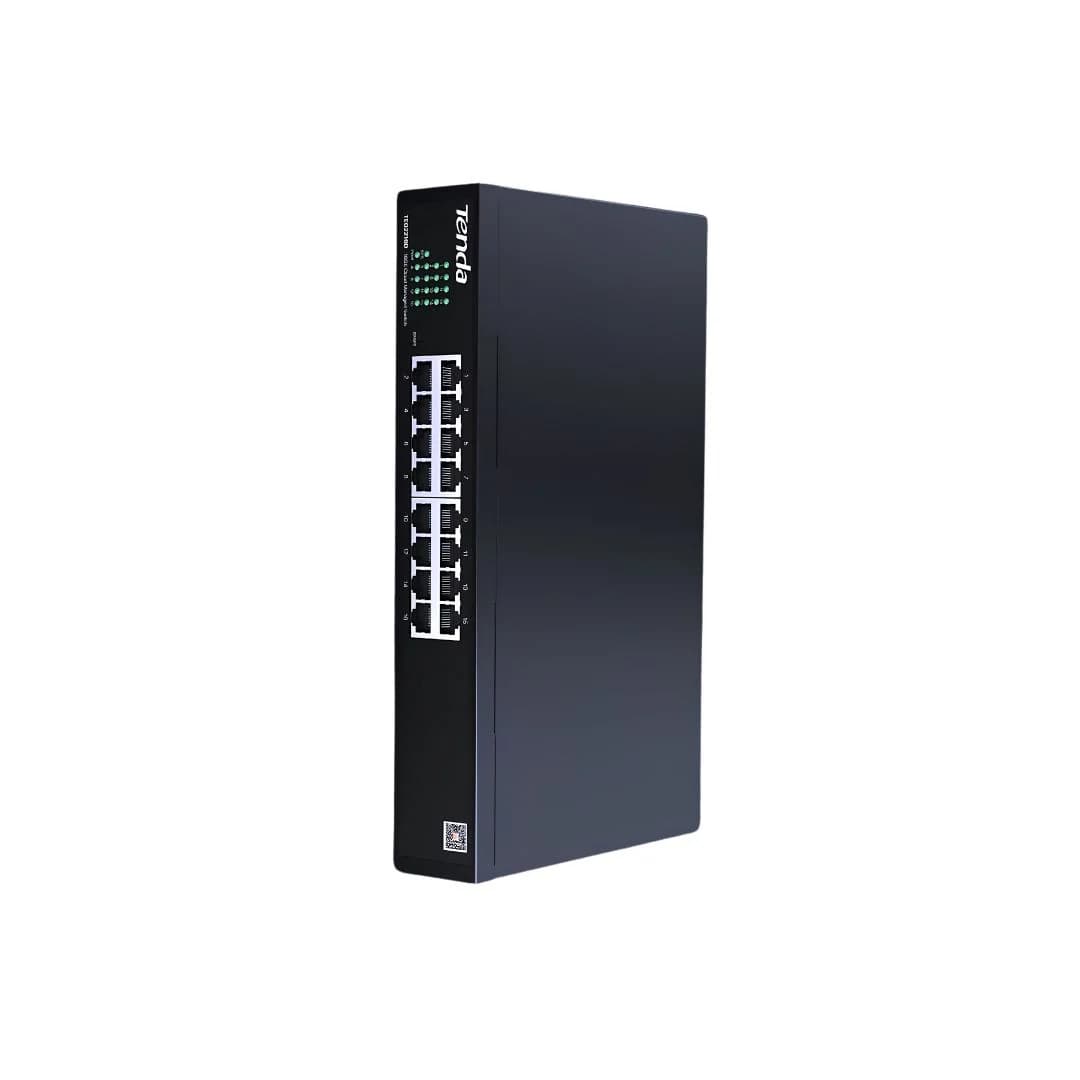

Tenda TEG2216D 16-Port Gigabit Managed - Ethernet Network Switch

Network Switch Specification

• Model: Tenda TEG2216D
• Product Type: 16-Port Gigabit Cloud Managed Switch
• Ethernet Ports: 16 × 10/100/1000Mbps RJ45
• Switching Capacity: 32Gbps
• Forwarding Rate: 23.8Mpps
• Management: Local Web UI, CloudFi Web Platform, CloudFi App
• VLAN: IEEE 802.1Q VLAN, VLAN Transparent Transmission
• Port Features: Flow Control, Port Isolation, Port Mirroring, Link Aggregation, Traffic Statistics
• QoS: Strict Priority, Weighted Priority
• Loop Protection: Supported
• Storm Control: Supported
• Speed Limiting: Ingress and Egress Rate Limiting
• MAC Features: MAC Address Table Viewing, MAC Whitelist Binding
• IGMP: IGMP Fast Leave, IGMP Report Suppression
• DHCP: DHCP Client, DHCP Snooping
• Firmware Upgrade: HTTP Upgrade
• Configuration: Import / Export Configuration
• PoE: No
• LED Indicators: Power, Link/Act, System
• Housing Material: Metal
• Lightning Protection: 6kV Ethernet Ports, 6kV Power
• Power Input: 100–240V AC, 50/60Hz
• Maximum Power Consumption: <12W
• Mounting: Desktop, Wall Mount, Rack Mount
• Dimensions: 294 × 178 × 44mm
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH, Non-Condensing
• Certifications: FCC, CE, RoHS
