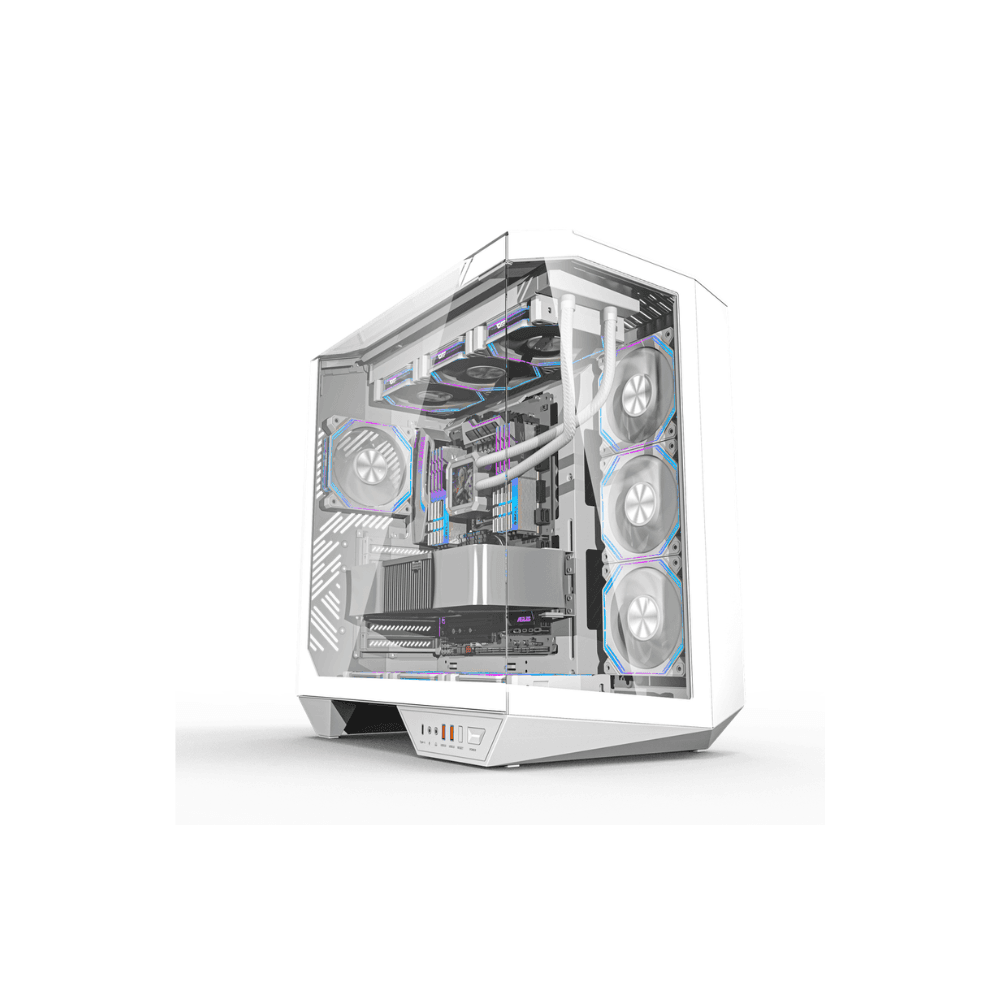

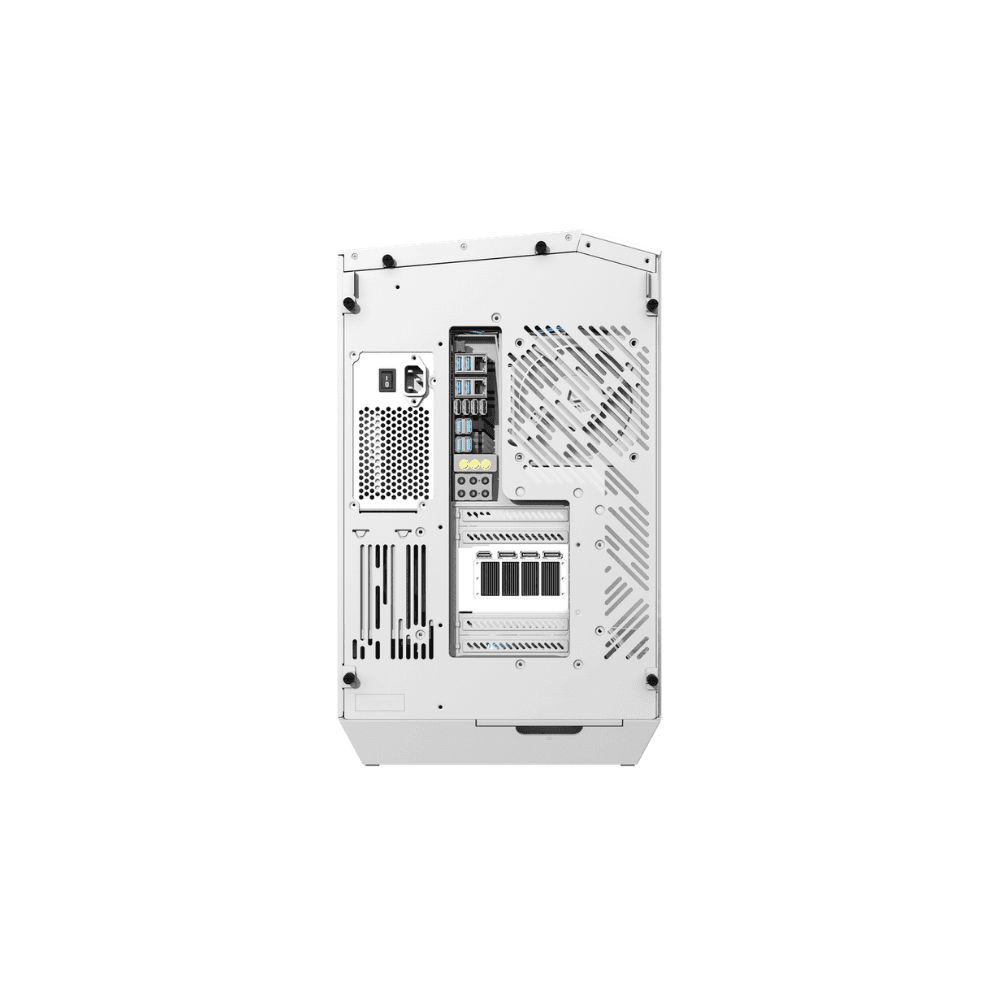

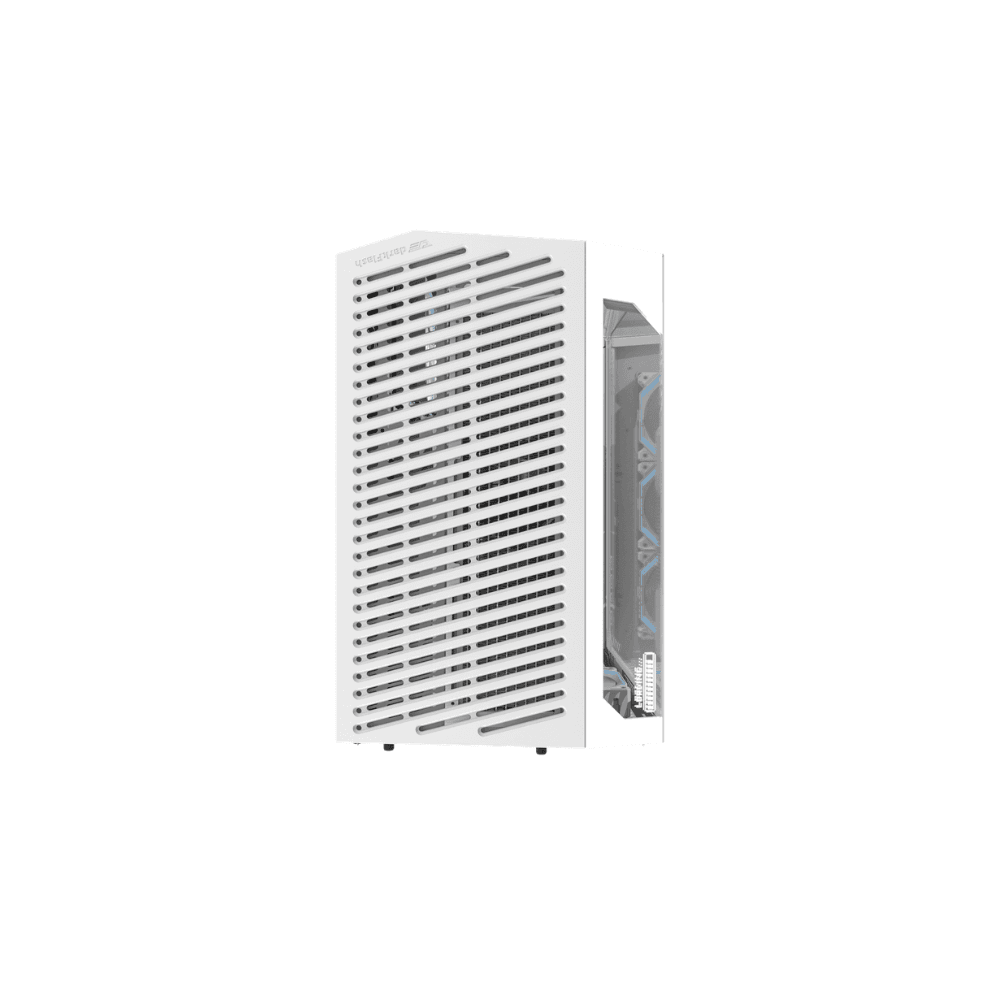

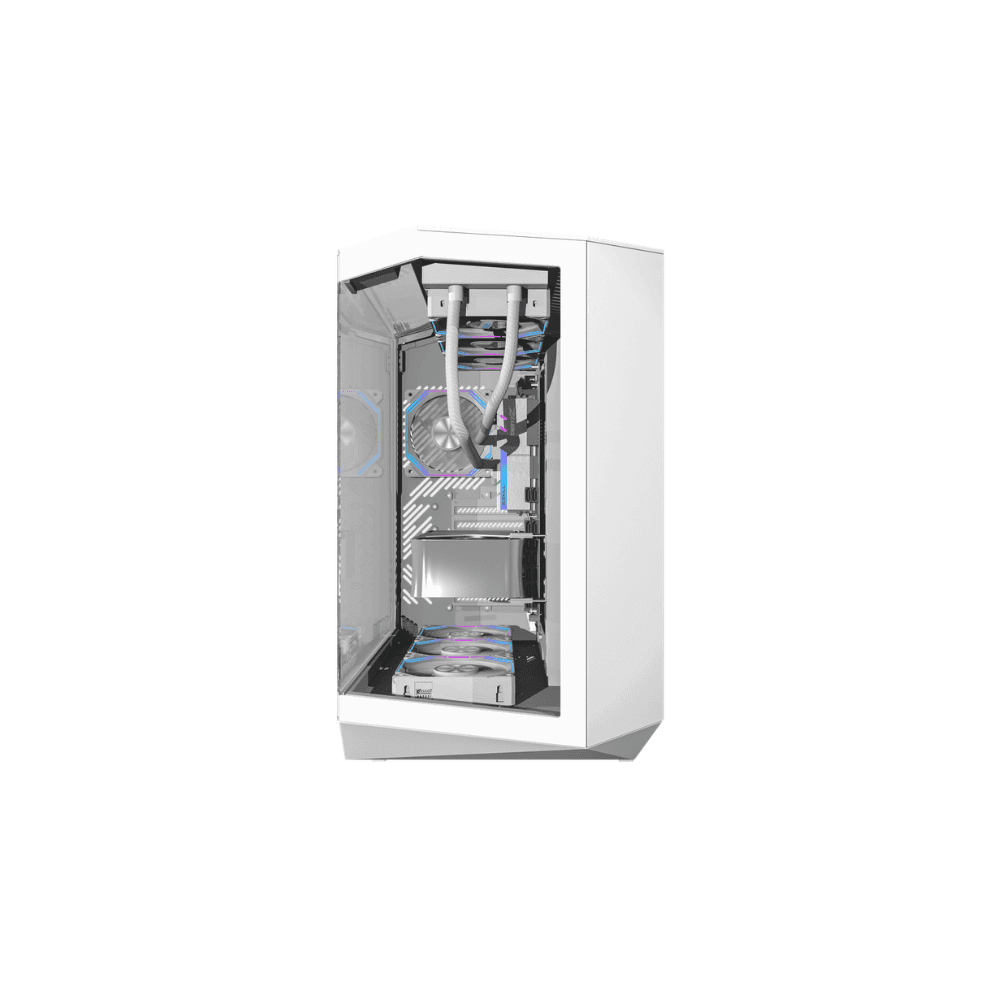

Dark Flash DY470 ATX PC Case

Key Specifications

• Case Type: ATX Mid-Tower
• Motherboard Support: ATX / Micro-ATX / Mini-ITX
• Case Material: 0.7mm SPCC
• Color: Shadow White
• Side Panel: 3-Side Tempered Glass
• Back-Connect Motherboard Support: Yes
• Vertical GPU Support: Yes
• PCIe Slots: 7
• Power Supply Support: ATX (DarkFlash)

Dimensions

• Case Size: 473 × 298 × 497 mm (DarkFlash)

Compatibility & Clearance

• Max GPU Clearance: 410mm Horizontal / 390mm Vertical
• Max CPU Cooler Clearance: 175mm
• PCIe Slots: 7
• GPU Support: Horizontal / Vertical (DarkFlash)

Drive Bays

• 3.5″ HDD: 2
• 2.5″ SSD: 1 (DarkFlash)

Fan Support

• Top: 120mm × 3
• Side: 120mm × 3
• Bottom: 120mm × 3
• Rear: 120mm × 1
• Maximum Fan Support: Up to 10 × 120mm (DarkFlash)

Radiator Support

• Top: 360mm / 240mm / 120mm
• Side: 360mm / 240mm / 120mm
• Rear: 120mm
• Maximum Radiator Support: Up to 2 × 360mm (DarkFlash)

Front I/O

• USB 3.0: 2
• USB Type-C: 1
• Audio: HD Audio
• Power Button: Yes
• Reset Button: Yes
• USB Type-C Speed: Up to 10Gbps (DarkFlash)

Pre-Installed Fans

• Fans Included: 4 × ARGB Fans
• Configuration: 3 × Reverse-Blade + 1 × Forward-Blade
• Fan Bearing: Hydro Bearing (DarkFlash)

Features

• Three-Side Panoramic Glass Design
• 330° Panoramic View
• Back-Connect ATX Motherboard Compatible
• Adjustable GPU Support Bracket Included
• Vertical GPU Installation Support
• Quick-Release Dust Filter
• Cable Management Cover
• USB Type-C 10Gbps
• Up to 10 × 120mm Fans
• Dual 360mm Radiator Support (DarkFlash)
